1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck, Black

4.3 out of 5 Customer Rating
ARRMA #ARA5210
Earn points on this item
In Stock
Selected Store

| Checkout out our products at a store near you.
Product Logo
Fully assembled and ready for your choice of electronics, the ARRMA® OUTCAST 1/5 4WD Extreme Bash Stunt Truck Roller adds extra toughness everywhere it counts — making it the ultimate platform for performing stunts and bashing over brutal terrain.
  • EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
  • EXB Matte and gloss effect body
  • Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
  • dBoots® Back-Flip tires
  • All-metal diff outdrives and gearbox internals
  • (1) ARRMA® OUTCAST™ 1/5 4WD Extreme Bash Stunt Truck Roller
  • (1) Optional 39T Spur Gear
  • (1) 49 Series Motor Plate
  • (1) 56 Series Motor Plate
  • (1) 1/5 Servo Mounts
  • (1) 1/6 Servo Mounts
  • (1) 1/5 OUTCAST 4WD EXtreme Bash Roller Manual
  • (1) 2+ Channel Transmitter and Receiver
  • (1) Metal Gear, Hi-Torque 1/5 Scale Steering Servo
  • (1) Electronic Speed Control
  • (1) Motor
  • (2) 3S or 4S LiPo Battery
  • (1) Compatible LiPo Battery Charger
  • (1) Pinion Gear
1/5 OUTCAST 4WD EXtreme Bash Roller Stunt Truck, Black

Introduction

This is ARRMA® bashing performance at its biggest and best! Fully assembled and ready to complete with your choice of radio and 8S brushless power system, the 1/5 OUTCAST 4WD EXtreme Bash Stunt Truck Roller is the perfect platform for blasting over rough terrain and performing flips and tricks with ease.

Features

  • EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
  • EXB Red-anodized CNC aluminum front brace mount
  • EXB Matte and gloss effect body
  • Heavy-duty 8mm thick steel rear turnbuckles
  • Heavy-duty 7mm thick steel steering turnbuckles
  • Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
  • Heavy-duty servo saver springs
  • Front and rear sway bars
  • Red-anodized aluminum 49 and 56 series motor plates
  • dBoots® Back-Flip tires
  • 47T and optional 39T Spur Gear
  • Servo mounts for 1/5 and 1/6 servos
  • Wheelie bar
  • Front bumper with impact-absorbing design
  • Easy-access 3-bolt sliding motor mount for quick motor removal
  • Ultra-thick composite front and rear shock towers
  • Black anodized aluminum rear lower chassis brace
  • Multi-structured center brace system for maximum durability
  • Heavy-duty drivetrain
  • Easy-access front and rear diff module design
  • All-metal diff outdrives and gearbox internals
  • Durable steel driveshafts
  • Durable wheel hubs for increased strength
  • Easy-access waterproof electronics module
  • Center body support and brace for maximum durability
  • Strong composite chassis side pods
  • 2-year warranty (see website support for details)

Overview

Equipped right out of the box with a premium package of EXtreme Bash (EXB) parts and options, the 1/5 OUTCAST 4WD EXB Stunt Truck Roller is the top-of-the-line ARRMA® large-scale stunt vehicle. It has extra toughness everywhere it counts. Components receiving the EXB treatment include the 5mm thick EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB red-anodized CNC aluminum front brace mount; and exclusive EXB matte and gloss effect finished body for a look unlike any other vehicle.

With adjustable, oil-filled, 20mm bore shocks on ultra-thick composite towers soaking up the bumps, the 1/5 OUTCAST 4WD EXB Stunt Truck Roller blasts over dirt, asphalt, and grass — all terrain and all conditions. Long-lasting dBoots® Back-Flip tires on multi-spoke wheels with durable hubs add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling.

A center body support, aluminum center braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to demanding stunts and brutal terrain.

ARRMA® engineering also cuts your maintenance time to the minimum. The 1/5 OUTCAST 4WD EXB Stunt Truck Roller has an efficient, driver-friendly design, with easy-access front and rear diff modules and a sliding mount for fast, hassle-free motor access. The easy-access, molded electronics module contains a waterproof receiver box, servo mount and ESC tray, and is ready to protect your choice of electronics from dirt and moisture.

It all adds up to make the 1/5 OUTCAST 4WD EXtreme Bash Stunt Truck Roller more than just massive and powerful. It's the ultimate ARRMA® stunt bash machine for the ultimate large-scale experience.

Video Overview



EXB (EXtreme Bash) Components
EXB (EXtreme Bash) Components

EXB-hardened components throughout its fully assembled chassis give the 1/5 scale ARRMA® OUTCAST EXtreme Bash Stunt Truck Roller virtually unstoppable strength.

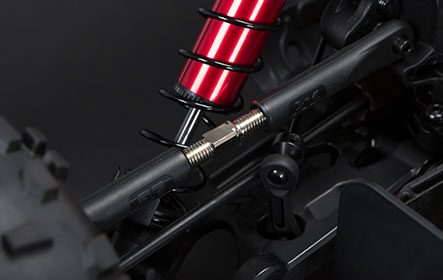

Steel Turnbuckles
Steel Turnbuckles

Heavy-duty components including the 8mm thick steel rear turnbuckles and 7mm thick steel steering turnbuckles enable the 1/5 scale OUTCAST EXB to withstand extreme off-road bashing.

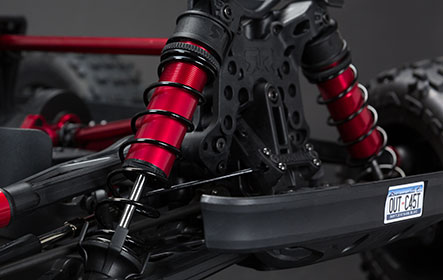

Oil-Filled Shocks
Oil-Filled Shocks

Mounted on ultra-thick composite front and rear towers and featuring new plush shock tuning, the adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts easily soak up bumps.



High-Traction dBoots<sup>®</sup> Tires
High-Traction dBoots® Tires

Long-lasting dBoots® Back-Flip tires on multi-spoke wheels with durable hubs deliver all-terrain traction — and add an aggressive edge to the EXB matte and gloss effect finished truck body.

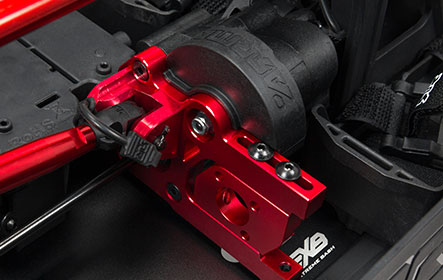

Quick Motor Access
Quick Motor Access

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. For example, the easy-access, 3-bolt sliding motor mount allows quick motor removal.

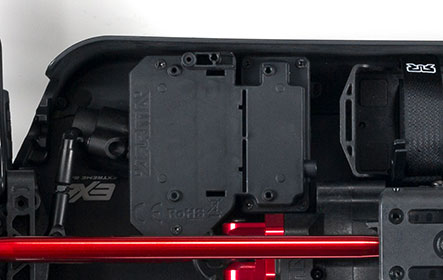

Electronics Module
Electronics Module

The easy-access, molded electronics module screwed to the chassis contains a waterproof receiver box, servo mount and ESC tray — ready to protect your electronics from dirt and moisture.

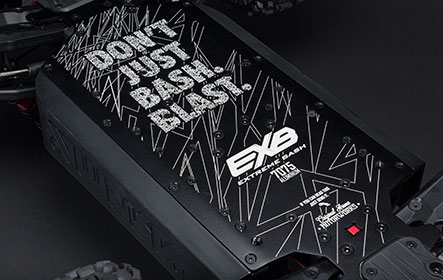

Multi-Structured Center Brace System
Multi-Structured Center Brace System

Made of rugged anodized 7075 T6 aluminum, the laser-etched 5mm chassis plate includes strong composite chassis side pods and a center body support and brace for maximum durability.

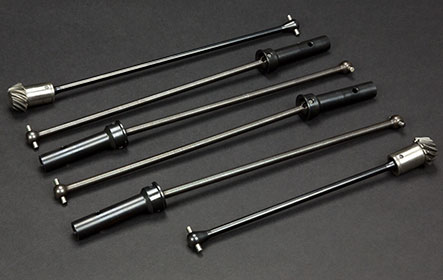

Durable Metal Construction
Durable Metal Construction

Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An EXB-toughened suspension system smooths the ride.



6S Completion Guide

These are our suggested products to complete this product.

8S Completion Guide

These are our suggested products to complete this product.

Product Specifications

Battery Tray Dimensions
6.69 x 2.16 x 2.09 in (170 x 55 x 53mm)
Front Track
23.46" (596mm)
Power System
Roller
Product Width
23.46" (596 mm)
Radio
Sold Separately
Product Weight
23.32lbs (10.6kg)
Vehicle Type
Stunt Truck
Water-Resistant
Yes
Charger
Sold Separately
Differential
3 Differentials, Gear Type Design
Receiver
Sold Separately
Shock Type
Aluminum Body Oil-Filled Coil-Over Springs
Approximate Assembly Time
1 - 3 Hours
Body
Painted, decalled and trimmed
Brakes
Integral with ESC (ESC not included)
Scale
1/5
Power Type
Electric
Gear Pitch
1.0 MOD
Servos
Sold Separately
Ball Bearings
Full Set, Rubber Shielded
Chassis
5mm plate, 7075-T6 aluminum
Completion Level
Roller
Drivetrain
4WD
Drive Type
Forward/Brake/Reverse
Product Height
12.01" (305 mm)
Top Speed
55+
Battery
Sold Separately
Internal Gear Ratio
9.06
Product Length
28.11" (714 mm)
Spur Gear
47T and 39T included
Suspension
Independent
Wheel Hex Size
24mm
Final Drive Ratio
9.1 - 28.4
Rear Track
23.46" (596mm)
Speed Control
Sold Separately
Wheelbase
16.93" (430 mm)
